High Current Relay · MIL configuration reference
2TM-7600-033B
M83536/9-033M
2PDT hermetic relay configuration reference · up to 10 A
The 2TM-7600 datasheet lists candidate mounting, terminal and MIL cross-reference configurations. It does not establish full MIL qualification or confirmed availability. Verify configuration and reliability evidence with HI-G before order release.

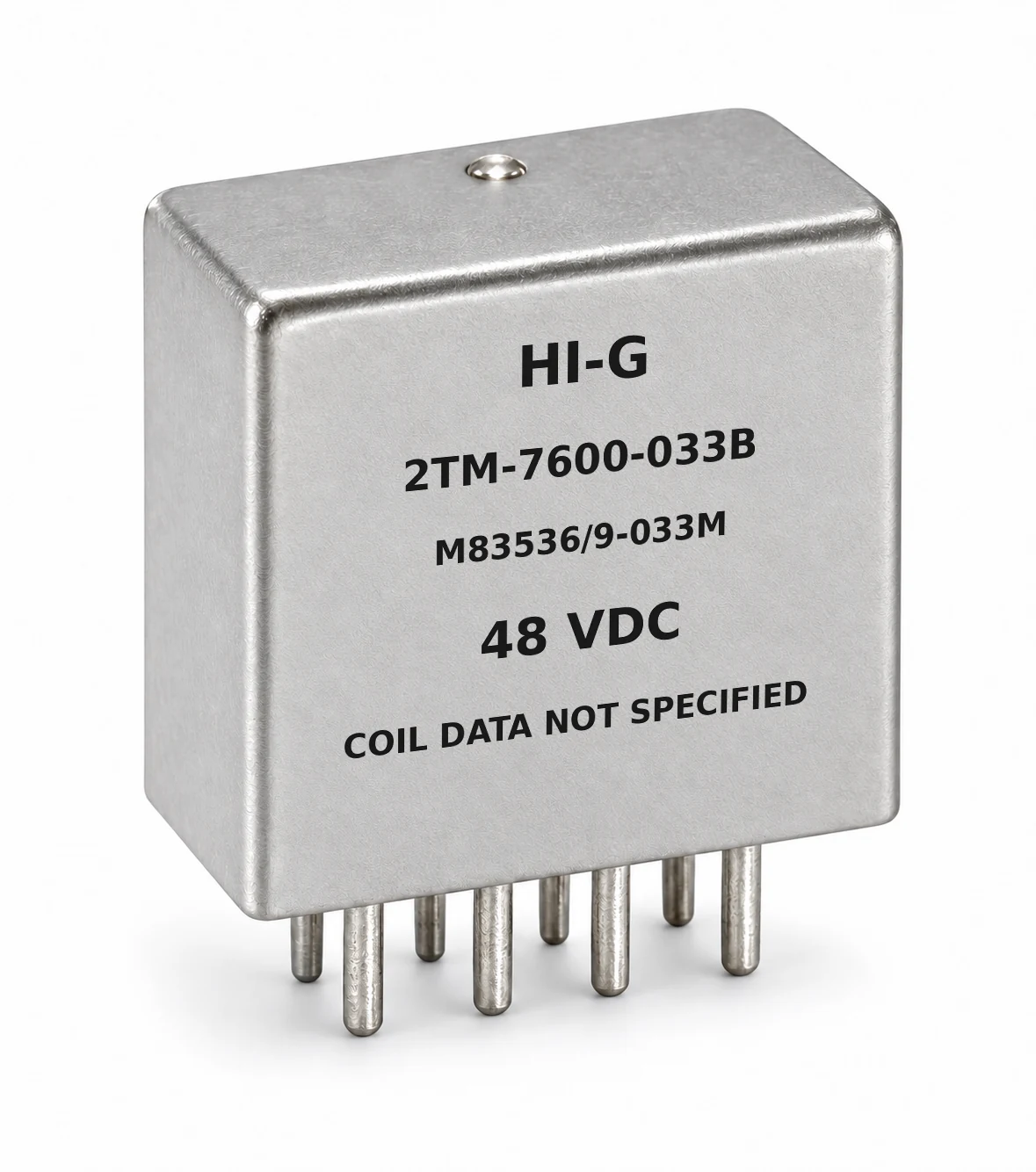

Illustrative series body; verify the exact mounting and terminal geometry on the linked datasheet.
Datasheet values · Revision on attached PDF
2TM-7600-033B
technical specifications
Values below are taken from the product datasheet associated with this part number. Qualification-specific limits remain governed by the controlled PDF.
- Part number
- 2TM-7600-033B
- HI-G series / cross-reference
- 2TM-7600 Series
- Qualification
- MIL configuration reference
- 48 V configuration reference
- Listed in the cross-reference table only; coil limits and resistance are not documented.
- MIL cross-reference
- M83536/9-033M
- Mounting
- B — Raised vertical flange (RVFM)
- Terminal style
- P — Solder pin
- Reliability suffix
- B requests MIL level M; separate reliability evidence is required.
- Configuration status
- Reference configuration only; availability and full MIL qualification are not established.
- Contact configuration
- 2 form C (2PDT) shown in title and wiring diagram; source contact-data row also states ‘1 C’ and requires confirmation.
- Resistive load
- 10 A at 28 Vdc or 115 Vac / 400 Hz
- Inductive load
- 8 A at 28 Vdc or 115 Vac / 400 Hz
- Motor / lamp load
- 4 A / 2 A at 28 Vdc; AC ratings not specified
- Initial contact resistance
- 0.01 Ω maximum
- Voltage drop after life
- 0.125 V maximum
- Operate / release time
- 10 ms maximum / 10 ms maximum
- Insulation resistance at 500 Vdc
- 100 MΩ initial; 50 MΩ after life or testing
- Dielectric strength
- Coil-to-case 1000 Vrms; other points 1250 Vrms initial and 1000 Vrms after life; low-pressure value 350 Vrms
- Operating temperature
- −65°C to +125°C
- Humidity / low air pressure
- 98% at 40°C / 4.39 kPa
- Vibration / steady acceleration
- 294 m/s², 10–3000 Hz / 490 m/s²
- Shock
- 1960 m/s²; pulse duration not specified
- Hermetic leakage
- 1 × 10⁻³ Pa·cm³/s maximum
- Weight / operating position
- 46 g maximum / random
- Internal coil suppression
- None
- MIL qualification
- Cross-reference only; no full qualification or equivalence is asserted.
Technical document · PDF
2TM-7600 Series technical datasheet
Electrical characteristics, coil data, contact ratings, environmental limits, terminal styles, dimensions and ordering information for 2TM-7600-033B.
HI-G · MIL · competitor codes
Part number cross-reference
HI-G part number: 2TM-7600-033B. MIL code: M83536/9-033M. The entries below are family-level cross-reference candidates from the HI-G comparison table. They do not confirm interchangeability or qualification; verify coil, contacts, terminals, mounting and ratings against the applicable datasheet.
